Detailed description：

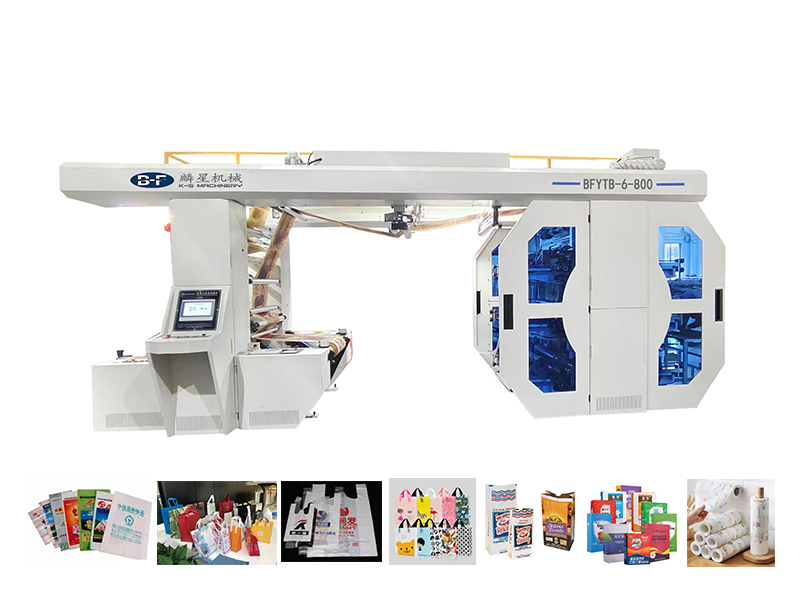

The machine is a printing embossing, edge inserting and rewinding machine which takes the flexible photosensitive resin plate as the substrate, transmits ink through the anilox roller and prints the substrate with liquid ink; The machine is composed of unwind unit, corona treatment, deviation correction unit, traction feeding unit, printing unit, drying unit, detection unit, rewinding traction unit, embossing unit, edge inserting unit and rewinding unit. The whole machine is driven by servo and controlled by PC system; The machine has reasonable structure, fast printing speed and simple operation. It is an ideal flexible packaging equipment such as FFS bag and woven bag in China.

characteristic：

1. The whole machine is centrally controlled by PC system, 360 degree electric color registration (full-automatic computer automatic color registration is optional), high-definition color still picture monitoring, which is convenient for the observation of printing quality;

2. The unwinding unit adopts single station structure; 3 ″ + 6 ″ shaftless  feeding mode; Automatic deviation correction and constant tension control; Equipped with refueling warning and paper break shutdown device;

3. The whole machine is driven by high-precision servo motor;

4. Unwinding traction adopts double cots to press and feed paper, and the pressure is controlled by pneumatic components; The taper control technology is used to control the tension to ensure the color registration accuracy;

5. The unwind adopts high-power corona machine for surface material treatment to strengthen the printing adhesion so that the ink will not fade;

6. The printing unit adopts ceramic mesh roller ink transfer, two-way closed ink scraping mode, and the ink supply pump automatically supplies ink; Hydraulic clutch of mesh roller and plate roller, automatic separation after shutdown; The independent motor drives the mesh roller to prevent the ink from solidifying on the surface of the mesh roller and blocking the mesh hole.

7. The embossing die adopts high-precision alloy abrasives, which has long service life and is not easy to be damaged;

8. The inserting edge is controlled by stainless steel frame, and the depth can be adjusted manually according to the product size;

9. The rewinding traction adopts double cots to press and feed paper, and the pressure is controlled by pneumatic components; The taper control technology is used to control the tension to ensure the post overprint accuracy;

10. The material rewinding unit can adopt single work position structure (fully automatic non-stop material receiving is optional); 3 "or 6" inflatable air shaft loading mode; Driven by motor, with closed-loop tension control and paper breaking shutdown device.

11. Independent drying system: built in infrared wave heating drying (temperature adjustable)

Substrate：

FFS bag, woven bag, plastic film, paper plastic bag, valve bag, putty bag and other flexible packaging roll materials.

Main technical parameters
