Characteristic：
1. The whole machine is centrally controlled by PC system, fully automatic computer automatic color registration, high-definition color still picture monitoring, which is convenient for the observation of printing quality;
2. The unwinding unit adopts single station or double station structure; 3 ″ inflatable air shaft loading mode; Automatic deviation correction and constant tension control; Equipped with refueling warning and paper break shutdown device;
3. The whole machine is driven by high-precision servo motor;
1、Detailed description：

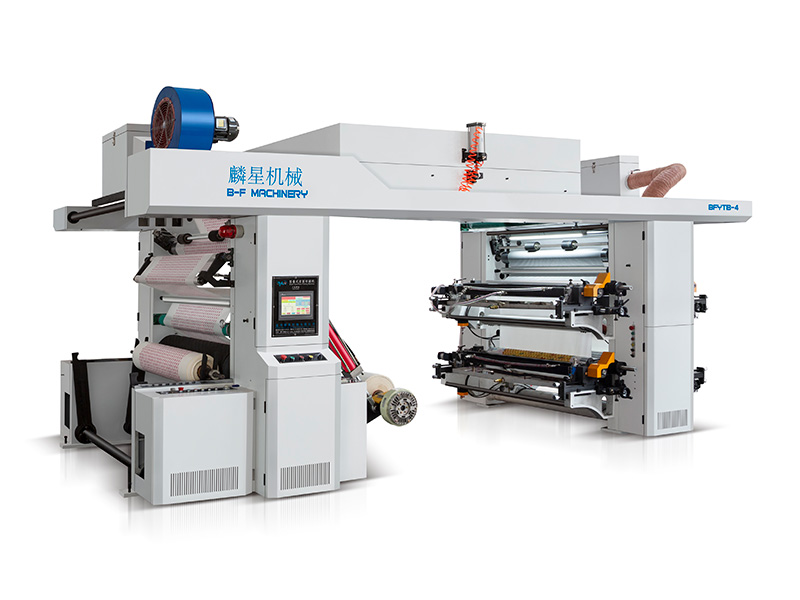

This machine is a flexible photosensitive resin plate as the base material, through the roller ink, liquid ink printing substrate. The machine is composed of feeding unit, tension control unit, traction feeding unit, printing unit, drying unit, winding traction unit and rewinding unit and other main units, the whole machine is driven by servo, PC system centralized control; The machine has reasonable structure, fast printing speed and simple operation. It is the ideal flexible packaging equipment in China at present.
2、Substrate：
Plastic film, roll paper, non-woven fabric, woven bag, thin skin and other flexible packaging roll materials
3、Main technical parameters
|
Model |
KSCD-S-A-650mm |
KSCD-S-A-1050mm |
KSCD-S-A-1250mm |
KSCD-S-A-1650mm |
|||
|
Material width |
600mm |
1000mm |
1200mm |
1600mm |
|||
|
Printing width |
570mm |
970mm |
1170mm |
1570mm |
|||
|
Printing length |
280-1000mm |
||||||
|
Printing color |
4 -10 color（Optional positive and negative printing and sleeve device） |
||||||
|
Material diameter |
Ф600 or Ф1000mm |
||||||
|
Mechanical speed |
50-220m/min |
||||||
|
Printing speed |
50-200m/min |
||||||
|
Registration accuracy |
+-0.12mm |
||||||
|
Voltage |
3P380V |
||||||
|
weight |
Depends on the model |
||||||
|
Size (L * w * h) |
Depends on the model |
||||||
|
Optional unit |
1. Fully automatic non-stop unwind&rewind 2. Anilox roller + printing plate roller sleeve device 3. Pressure regulation: servo motor control 4. On line slitting device: round knife or straight knife 5. UV drying unit: LED or mercury lamp 6. Corona device: eliminate surface static electricity and prevent ink from falling off 7. Electrostatic elimination or dust removal unit: eliminate surface static electricity 8. Connecting device: it can be used together with other machines |
||||||
