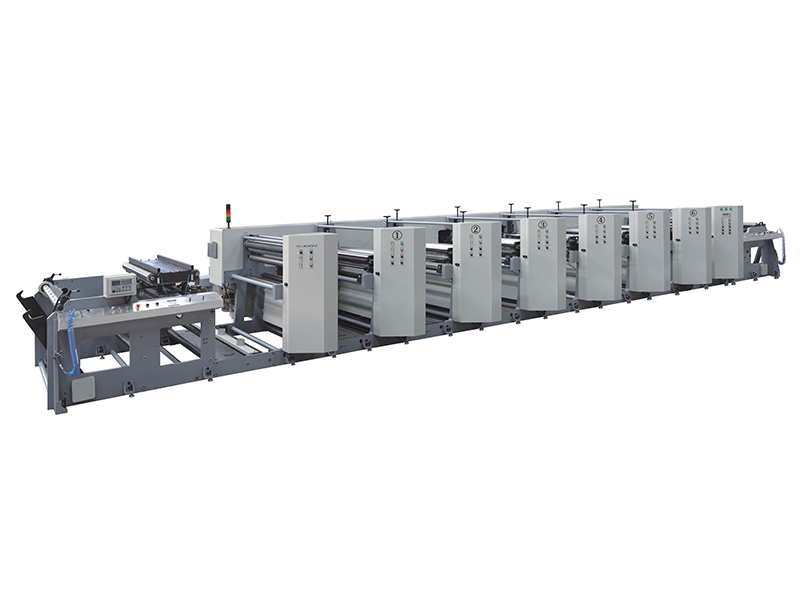

BFRY-A Series 4 Color Unit Type Flexographic Printing Machine

Perfect for printing thick kraft paper(30-350gsm), paper fan, Beer case outer packing...

0086-15325777338

Inquiry Whatsapp

The working principle of the machine (mainly including the following parts) :

Unwind unit—Prepress correction—Prepress traction—Printing unit(4color)—heat drying—Rewind traction—Rewind unit-Control system and console

Main Technical Parameter:

Model

BFRY-A4600

BFRY-A4800

BFRY-A41000

BFRY-A41200

Max Material Width

600mm

800mm

1000mm

1200mm

Max Printing width

580mm

780mm

980mm

1180mm

Printing length

320-1500mm

320-1500mm

320-1500mm

320-1500mm

Printing color

4 color

Mechanical speed

20-160m/min

Printing speed

20-150m/min

Printing unit Composition

Ceramic anilox roller, Chamber doctor blade, Ink pump, Printing cylinder,  Pressure roller

Voltage

3p 380v 50hz

Weight

5000kg

5500kg

6000kg

6500kg

Dimension

12.5*2.1*1.5m

12.5*2.3*1.5m

12.5*2.5*1.5m

12.5*2.7*1.5m

Optional devices

1.Pneumatic or hydraulic unwind&rewind

2.Video inspection

3.Corona treatment

4.Slitting knife

5.PLC control

6.Automatic non -stop unwind&rewind

7.Online device
