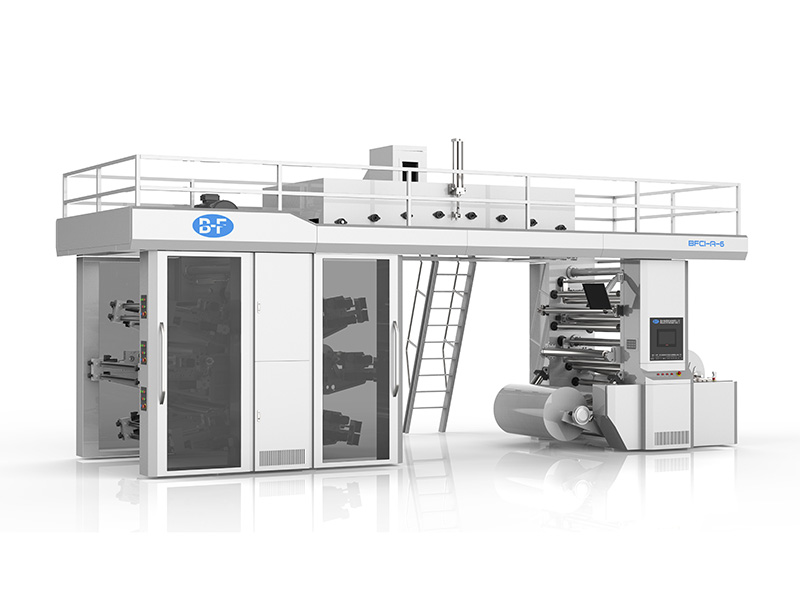

KSCI-EYC-A Series CI Flexo Printing Embossing and Edge Inserting All-in-one Machine

Printing materials:
FFS heavy-duty film, plastic film, woven bag, valve bag, paper plastic bag and other flexible packaging roll materials

0086-15325777338

Inquiry Whatsapp


Main features:

1. The whole machine adopts PLC and variable frequency drive control system,

2. The unwinding process of the base material and the end face of the finished product shall be in order to ensure the stability of the winding process;

3. High precision ceramic anilox roller, fully enclosed doctor blade and pneumatic automatic ink pumping system are used for inking;

4. The color registration adopts electric registration and pressure control, and the HD color still picture monitoring is convenient for the observation of printing quality;

5. The unwind adopts high-power corona machine for surface material treatment to strengthen the printing adhesion so that the ink will not fade;

6. The central drum and central big gear are made of high-precision materials;

7. Closed loop constant tension design of high-precision tension sensor ensures accurate and stable printing tension

8. Independent hot air electric heating and drying unit, high efficiency and energy saving, and heat transfer oil or steam heating mode can also be selected;

9. Adjustable reverse printing frame for reverse color adjustment

10. The embossing die adopts high-precision alloy abrasives, which has long service life and is not easy to be damaged;

11. The inserting edge is controlled by stainless steel frame, and the depth can be adjusted manually according to the product size;

12. The rewinding unit can adopt single work position structure (fully automatic non-stop receiving); 3 "or 6" inflatable shaft loading mode

Main Technical Parameters:

Machine model

KSCI-EYC-A-850mm

KSCI-EYC-A-1050mm

KSCI-EYC-A-1350mm

Material width

800mm

1000mm

1300mm

Printing width

770mm

970mm

1270mm

Printing color

1、4 color(2+2)

2、6 color(6+0、3+3)

3、8 color(4+4、8+0)

Printing length range

345-1350mm

Material diameter

1500mm

Mechanical speed

50-220m/min

Single side non embossing edge inserting speed

50-200m/min

Printing embossing and edge inserting speed

50-160m/min

Overprint accuracy

±0.12mm

Overprint mode

1. Vertical: electric or computer automatic color registration

2. Horizontal: manual or electric

Machine weight

depends on the model

Machine size

depends on the model

Working piezoelectric

3P 380V  50hz

Other options:

1. Fully automatic non-stop unwind

2. Automatic computer color registration

3. Anilox roller + printing plate roller sleeve device

4. Pressure regulation: servo motor control

5. UV drying unit: LED or mercury lamp
